57.0 XHV All-Metal Angle Valve

  • 57.0 - 57036-GE41
  • 57.0 XHV All-Metal Angle Valve

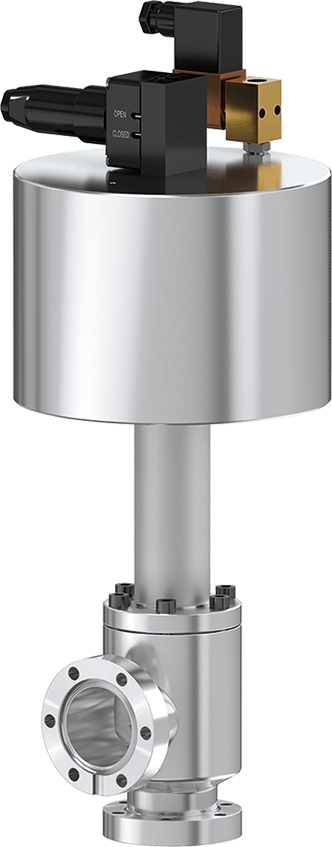

57.0 - 57036-GE41
57.0 XHV All-Metal Angle Valve
View dimensions

Series

57.0 XHV All-Metal Angle Valve

Article number
57036-GE41
XHV to 5 bar (abs)

For extreme temperature and radiation requirements (DN 63 - 160)

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
Pneumatic: single acting with closing spring (NC)
Position indication signal
Visual (Mechanical), 80° C
Solenoid
Yes
Pressure min.
XHV
Pressure max.
5.0 bar (abs)
Conductance
125 ls⁻¹
Differential pressure on plate
≤ 5 bar
Differential pressure at opening
≤ 1 bar
Cylinder volume
0.8 l
Max. compressed air pressure
9 bar / 131 psi
Min. compressed air pressure
6 bar / 87 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Close open time
4 s
Weight
26 kg / 57.32 lbs
Max. temperature actuator
≤ 150 °C
Max. temperature valve body
≤ 350°C
Add-Ons for Your Product
Valve
Position indicator
Actuator

57.0 XHV All-Metal Angle Valve 57036-GE41 Manual

PDF 499.89 KB

57.0 XHV All-Metal Angle Valve 57036-GE41 2D Dimension Drawing

PDF 286.26 KB

57.0 XHV All-Metal Angle Valve 57036-GE41 Product Datasheet

PDF 114.87 KB

57.0 XHV All-Metal Angle Valve 57036-GE41 3D CAD File

ZIP 688.63 KB

Spare parts

Please specify your spare part need at the end of your selection process, on the next page.
