14.0 HV Gate Valve

  • 14.0 - 14036-CE48
  • 14.0 HV Gate Valve

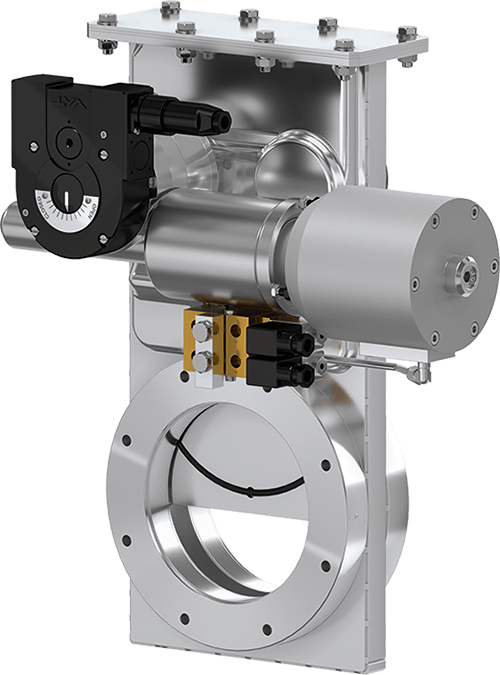

14.0 - 14036-CE48
14.0 HV Gate Valve
View dimensions

Series

14.0 HV Gate Valve

Article number
14036-CE48

For standard high cycle vacuum isolation

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
3-position pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
440 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 30 mbar
Max. temperature solenoid
≤ 50 °C
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
≤ 2.5 s
Weight
14 kg / 31 lbs
Max. Temperature Actuator
≤ 50 °C
Max. temperature valve body
≤ 150 °C
