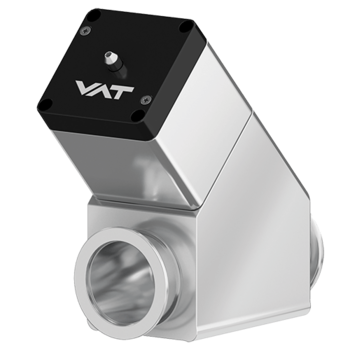

The key performance indicators for inline valves are reliability and variability. The 26.5 HV Inline Valve series delivers both. Tested in thousands of demanding applications under various process condition the 26.5 series has proven its outstanding reliability. With its various design options in actuation, flange connections, body material or sealing nearly every requirement can be met.

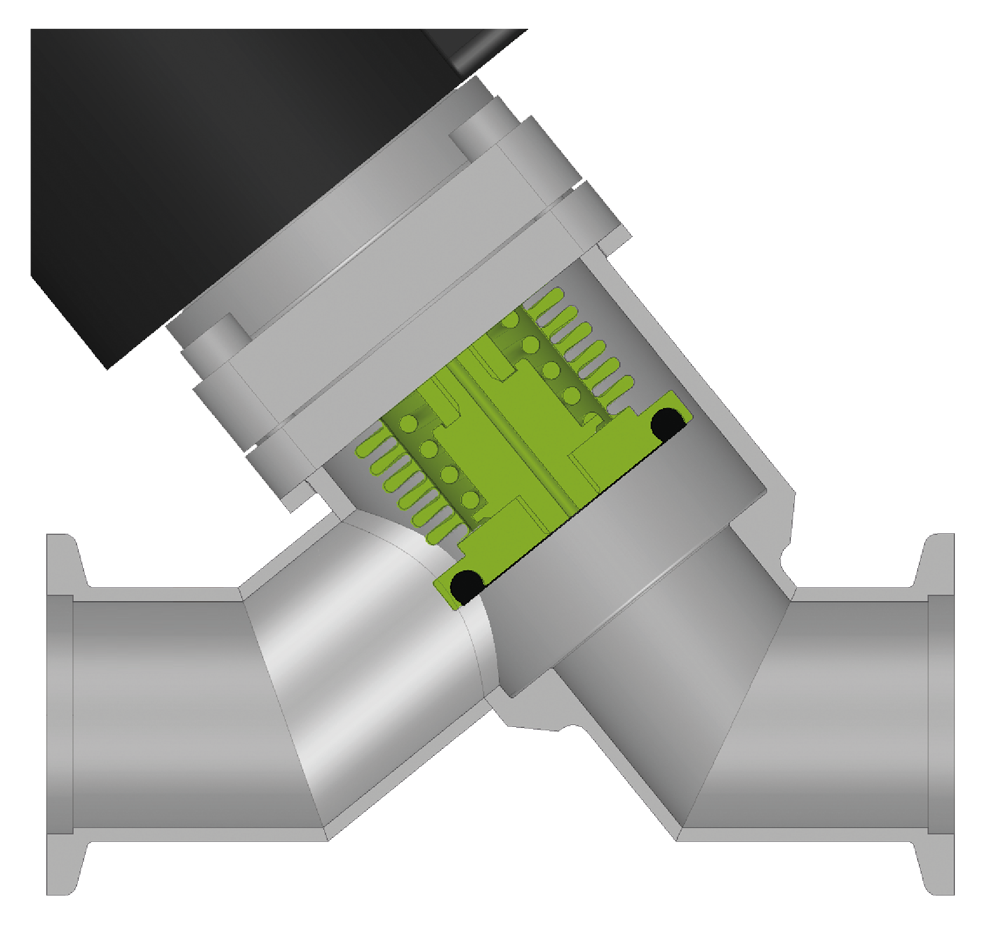

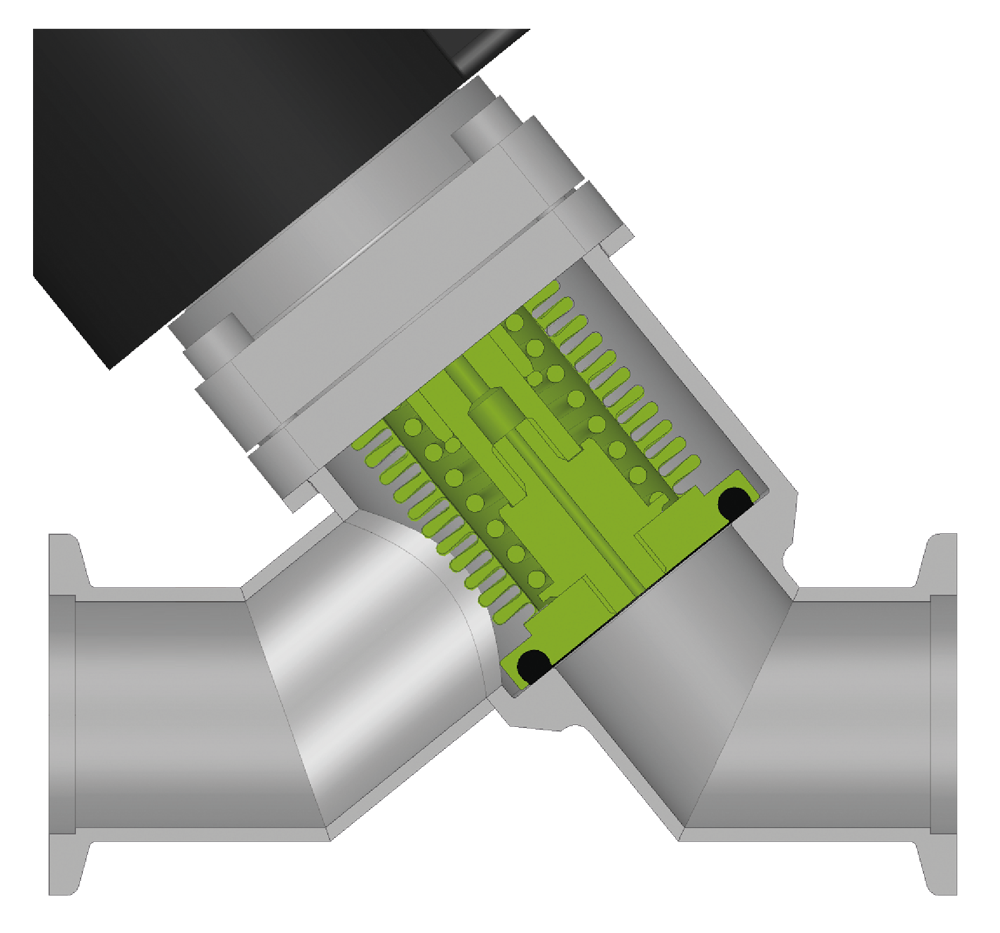

The 26.5 is ideal for pumping and venting of HV systems when a low outgassing rate is important. It resists high differential pressure and is fitted with a bellows-encapsulated feedthrough for particle-sensitive applications. The bellows encapsulation also prevents pressure peaks in any valve position.

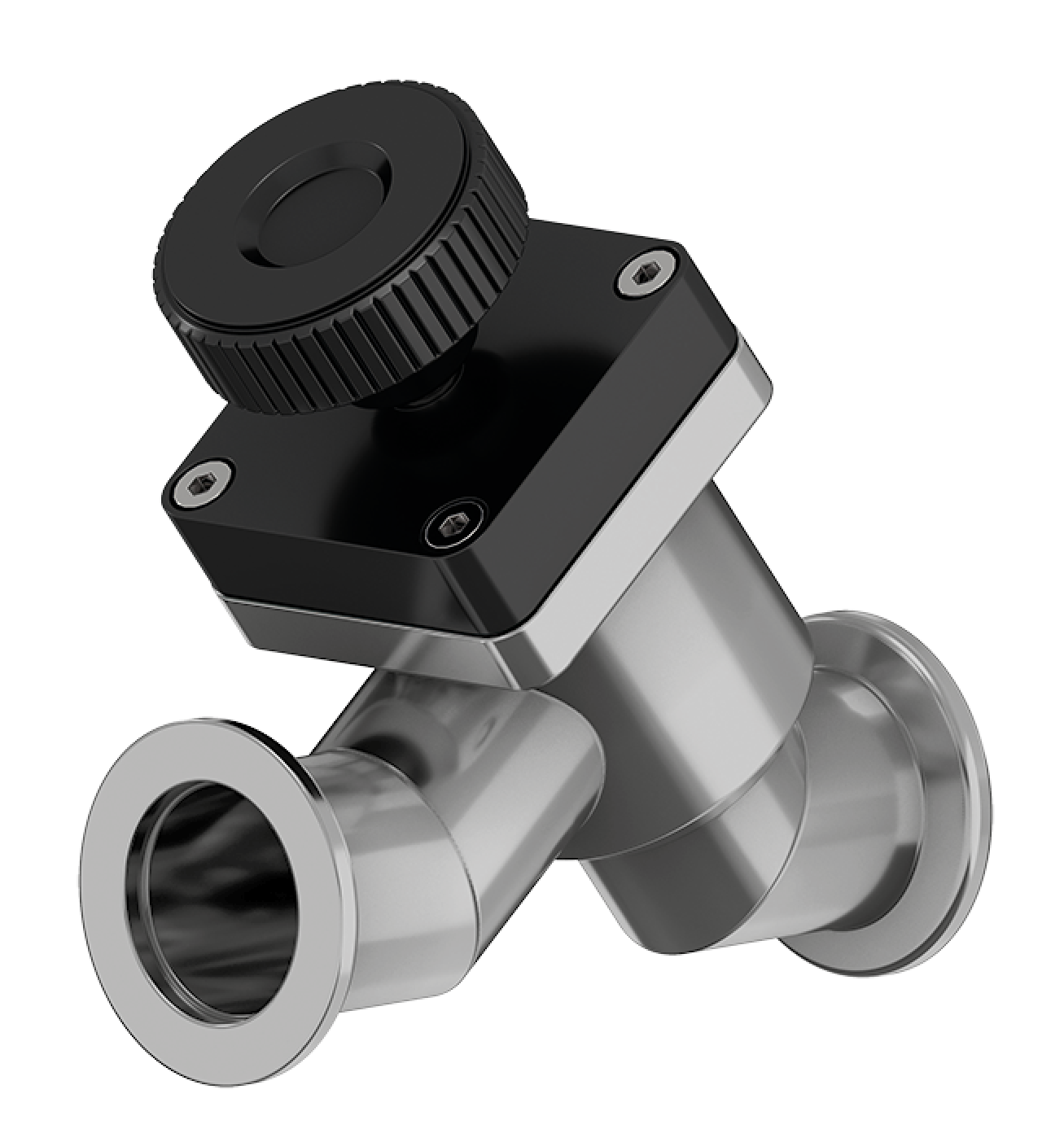

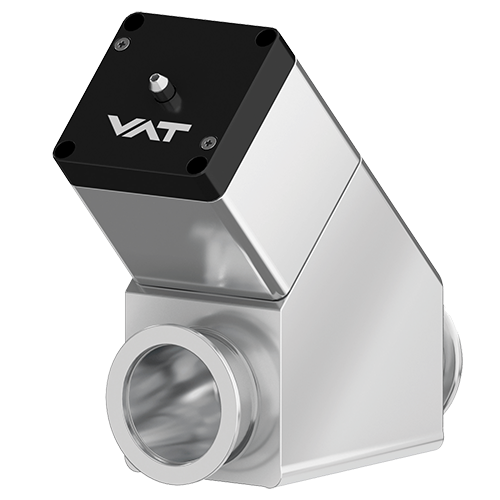

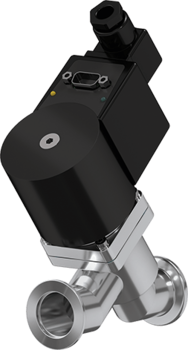

Based on a reliable and robust core design the 26.5 HV Inline Valve offers a variety of design options for actuation from manual to pneumatic and electromagnetic. In sizes from DN 10 to DN 160 mm (0.4" – 6.4") the 26.4 can be selected in aluminum or stainless steel in various specifications. The standard options for flange connectors are ISO-KF and ISO-K.
A visual position indication comes as standard although an electrical indicator can be added as an option. The valve can be controlled by a solenoid valve either “on board” or in a distant location if required. The 26.5 can be used in different temperature regimes depending on the sealing elastomer chosen. The valve can be supplied as normally opened (NO), normally closed (NC) or double acting. In addition to these standard options further customization is possible.
| Sizes | DN 10 - 80 mm (⅜" - 6") | ||
|---|---|---|---|
| Actuators |
Manual Electromagnetic |
With removable handwheel Single acting with closing spring (NC) or Single acting with opening spring (NO) or double acting Single acting with closing spring (NC) |
|
| Body material | Aluminum or stainless steel | ||
| Feedthrough | Bellows | ||
| Standard flanges | ISO-KF, ISO-K | ||
| Leak rate | Valve body, valve seat | < 1 × 10-9 mbar ls-1 | |
| Pressure range | Manual / pneumatic actuator Electromagnetic actuator |
1 × 10-8 mbar to 5 bar (DN 16 – 50) 1 × 10-8 mbar to 4 bar (DN 80) 1 × 10-8 mbar to 2 bar (DN 10– 40) |
|
| Differential pressure on the plate |
Manual / pneumatic actuator |
In opening direction In closing direction |
≤ 2.0 bar (DN 16 – 50) ≤ 1.2 bar (DN 80) ≤ 5.0 bar (DN 16 - 50) ≤ 4.0 bar (DN 80) |
| Electromagnetic actuator | ≤ 2.0 bar (DN 10 – 40) | ||
| Differential pressure at opening | ≤ 1 bar | ||
| Cycles until first service |
Manual actuator |
10 000 (DN 10 – 80) 3 million (NC, NO) (DN 10 – 80) 200 000 (DN 10 – 40) |
|
| Temperature | Valve body | Manual / pneumatic actuator Electromagnetic actuator |
≤ 150 °C ≤ 50 °C |
| Actuator | Manual / pneumatic Electromagnetic |
≤ 120 °C ≤ 50 °C |
|
| Solenoid valve & position indicator | ≤ 80 °C (DN 10 – 80) | ||
| Material |
Aluminum |
EN AW-6060 (3.3206), EN AW-6061 (3.3211), (DN 16 – 50) EN AW-6063 (3.3206), EN AW-6082 (3.2315) |
|
| Stainless steel |
AISI 304 (1.4301) (DN 10 – 50) AISI 316L (1.4404) (DN 80) |
||
| Plate | AISI 316L (1.4404, 1.4435) | ||
| Bellows | AISI 316L (1.4404, 1.4435), AISI 316 Ti (1.4571) | ||
| Seal | Bonnet, plate | FKM | |
| Mounting position | Any | ||
| Solenoid valve | 24 VDC, 2.5 W (others on request) (DN 10 – 80) | ||
| Position indicator: contact rating | Voltage | Manual / pneumatic actuator Electromagnetic actuator |
5 – 50 VAC / DC Max. 48 VAC / DC |
| Current | Manual / pneumatic actuator Electromagnetic actuator |
5 – 100 mA Max. 500 mA |
|
| Mains voltage | Electromagnetic actuator | 100 – 120 V / 200 – 240 V / 50 – 60 Hz | |
| Operating frequency | Electromagnetic actuator | Max. 15 min-1 at 20 °C | |
| Valve position indication | Visual (mechanical) | ||
